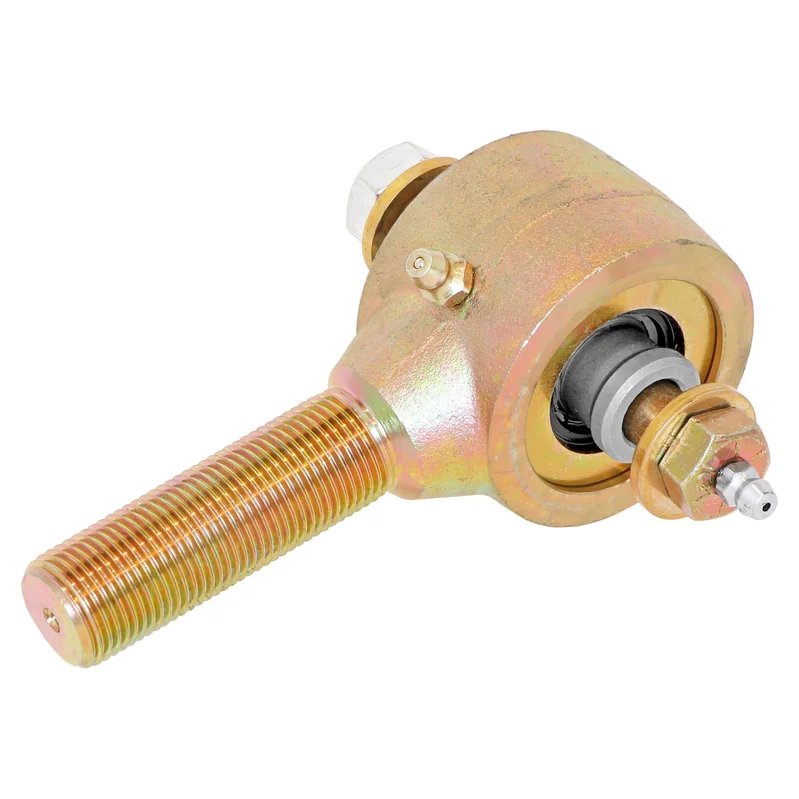

Johnny Joint Rod End, 2 in., Forged, 2 in. X .4375 in. Ball, 3/4 in.-16 RH Threaded Shank, Internally Greased, Incl. Greasable Bolt

Description

RockJock’s forged Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 3/4 in.-16 right hand threads on the shank, and a 2 in. mounting width ball with a .4375 in. thru bolt hole. Finished in gold zinc plating. This unit also includes a 7/16 in. greasable bolt for external greasing of the joint.
